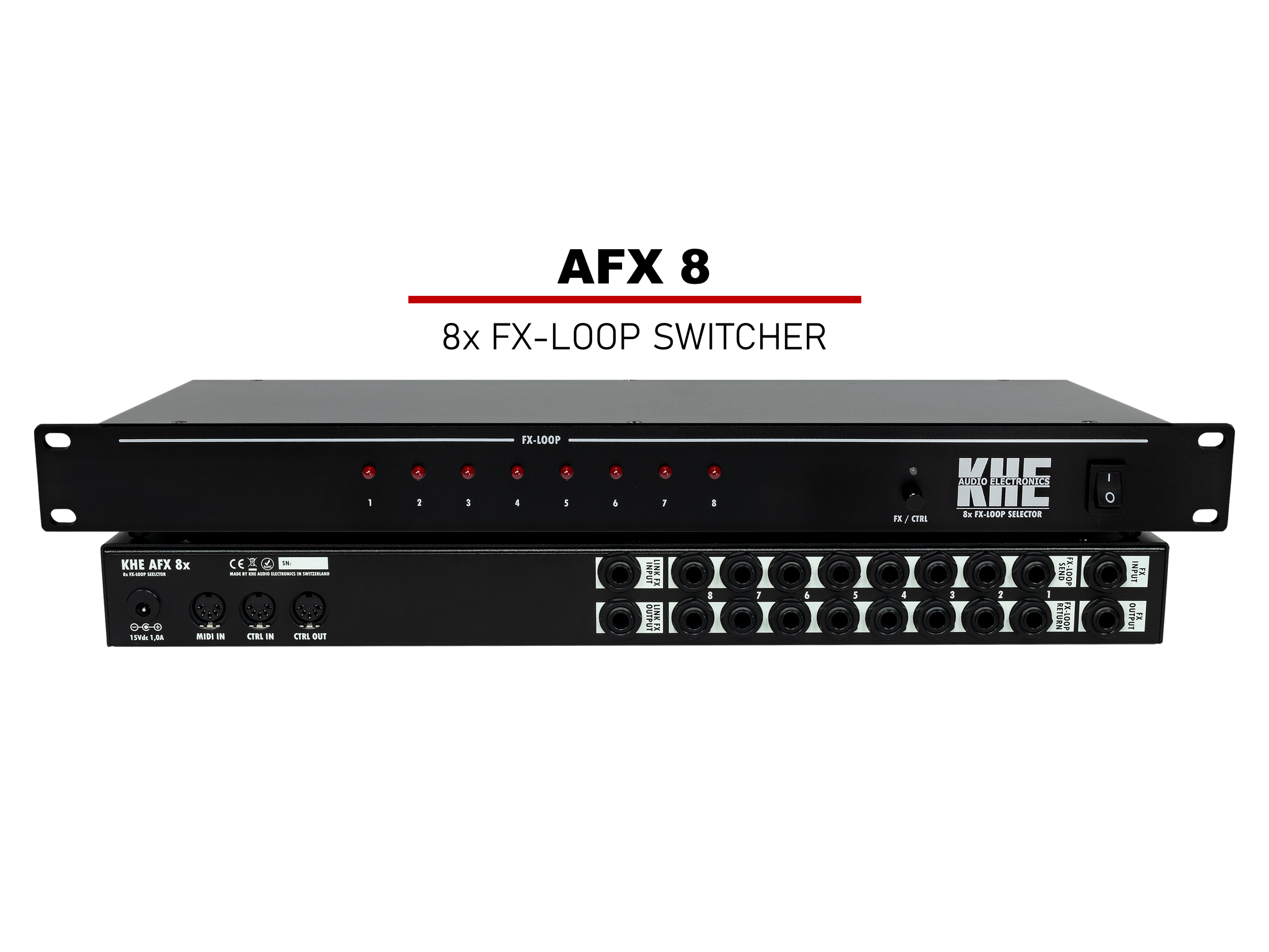

AFX 8 - FX-Loop Switcher

product slider afx8.PNG
product slider afx8.PNG

AFX 8 - FX-Loop Switcher

CHF 699.00

FX-Loop Switching Extension for ACS 8x4 and ASX 8

The KHE AFX 8 adds the 'FX-Loop Switching' feature to the ACS 8x4 or the ASX 8. The AFX enables to use 'post-amp' effects and pedals with all amps: Connect the pedals to the 'Master FX-Loop' of the AFX, and connect each amp's fx loop send and return to the AFX. Now the AFX automatically switches the pedals to the currently activated amp’s fx-loop on the KHE. This allows to use and share a single pedal board with all amps.

The AFX is compatible with all kind of mono guitar effects: Delay, Reverb, Chorus, Noise Gates, EQ, Switching Systems, Multi-Effects, even in 4-Cable-Method.

◾ Master FX-Loop can be true-bypassed for each amp.
◾ Bypass state automatically gets saved and recalled for each amp.
◾ Switches automatically to the activated amp on the KHE. No user input required.

◾ Full MIDI Control
◾ Multiple units can be linked to expand the switching options.
◾ Power supply included
◾ Professional amp switcher, built in Switzerland
◾ 30 day money-back guarantee

The AFX only works in combination with a KHE ACS 8x4 or ASX8. It has no standalone function or operation and is not compatible with amp switchers from other companies.

Scroll down for detailed info on the KHE AFX 8!


——————————————————

CHF 699.00

Excl. shipping, import taxes and VAT. Import duties may apply on import. Payment in CHF (Swiss Francs) by PayPal or Credit Card. Worldwide shipping out of Switzerland. UPS Express delivery option available.

SOLD OUT - Back in stock soon!

If possible, pay by Credit Card (less fees).

Sold Out
Get notified by email when this product is in stock.
Add To Cart

KHE Audio | AFX 8

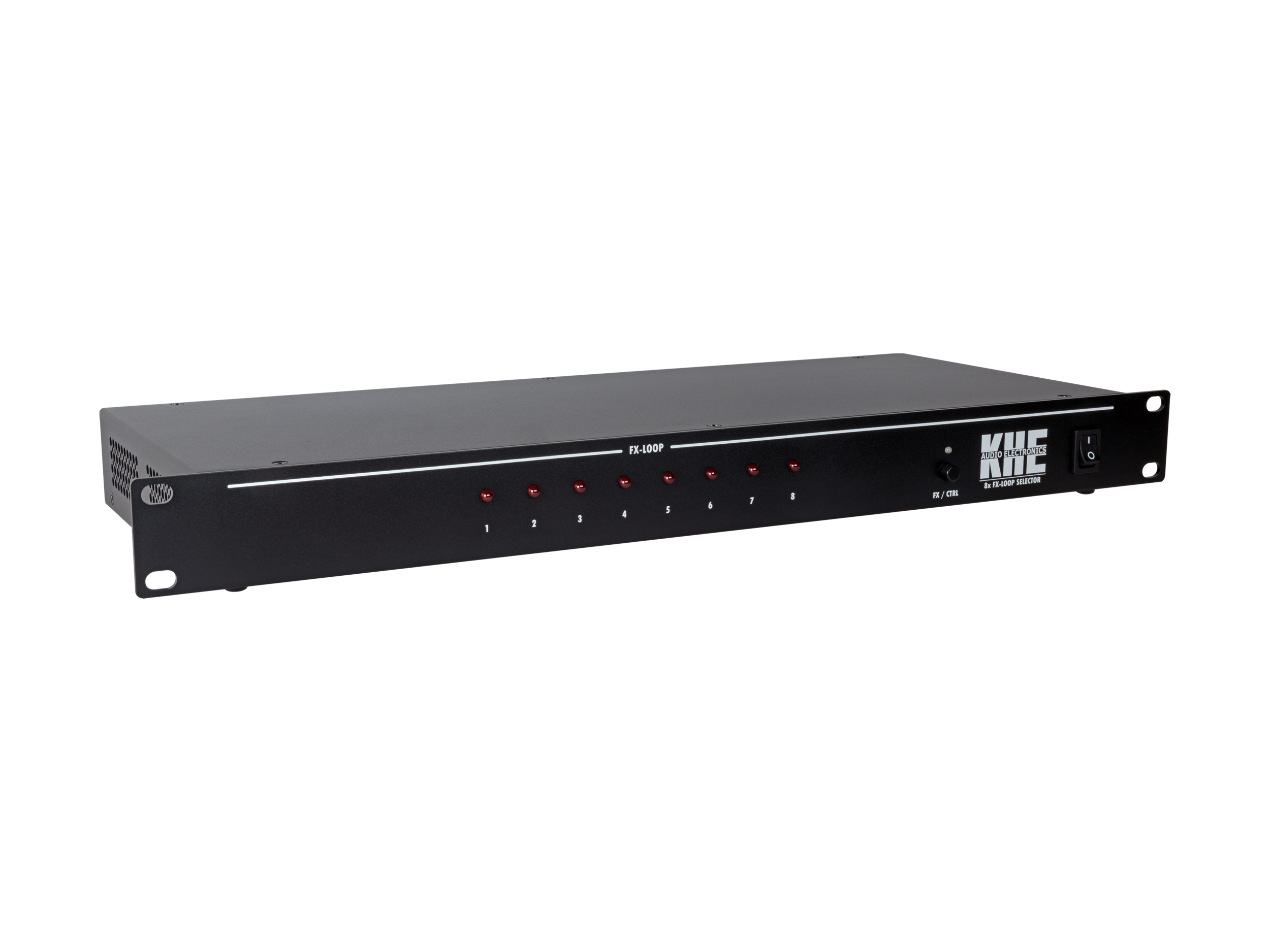

8x FX-Loop Selector in 19” 1u Rack Space
with MIDI control

The KHE AFX 8 lets you add FX-Loop Switching to the ACS 8x4 or ASX 8.

✔ share effect pedals like delays, gates, reverb and multi-fx in the effect loops of all connected amplifiers
✔ switches automatically in sync with the amp
✔ programmable true-bypass for all effect loops
✔ on/off states gets saved and recalled for each amp

The KHE ACS is the most advanced guitar amp switcher on the market:

✔ switch between any combination of guitar amps and cabs instantly, by the push of a button
✔ switch between speaker cabinets and load boxes for silent recording
✔ run pedals like boosts, overdrives, distortion and fuzzes in front of all amps
✔ share pedals like delay, reverb or gates in the fx-loops of all amps
✔ use a single power attenuator across all amps
✔ full MIDI control

✔ switch while you play - no need to put amps into standby or stop playing!
✔ works with tube & solid-state amps, speaker cabinets & load boxes, heads & combos
✔ 100% safe for tube amps: no amp can be activated without a load, amps are protected by a load resistor
✔ modular system, multiple switchers can be linked together to expand switching capabilities

WIRING DIAGRAMS




SPECIFICATIONS AFX 8

◾ Amplifier Switching: 0x
◾ Cabinet & Load Switching: 0x
◾ Load Resistors: NO
◾ Dual-Cab Mode: NO
◾ Attenuator Insert Loop: NO
◾ FX-Loop Switching: YES
◾ MIDI Control: NO
◾ Tuner Output: NO
◾ Modular System: YES
◾ Ground Lift: NO

◾ Switching Element: Relays, analog, sequential switched
◾ Control System: Microcontroller, digital
◾ Power Handling: switches max. 150 Watts per Channel
◾ Amplifier & Speaker Impedance: 1:1 pass-thru, passive

◾ Master FX-Loop: serial, passive, mono, Instrument + Line Level, on/off switching per amp
◾ MIDI Control: MIDI Input, 15 Channels, CC & PC Messages

◾ Switching Time: 15ms max.
◾ Contact Resistance: > 0.1 Ohm
◾ Guitar Input Impedance: 2,2 MOhm
◾ Guitar Input Type: active buffered
◾ Guitar Input Level: 15Vpp / +18dBu
◾ Frequency Range: 10-100kz +/-0.2dB

◾ Dimensions: 483 x 200 x 44mm / 19” 1U
◾ Enclosure: 1,5mm Steel
◾ Weight: 3.5kg
◾ Power Supply: 15VDC, 90-240VAC, external type, included
◾ Connectors: colour-coded for easy wiring
◾ Country: Switzerland
◾ Warranty: 2 Years
◾ User Manual: LINK

IMPORTANT NOTES

◾ no amp can be activated if no load is activated!
◾ no stereo amp switching - mono only!
◾ no bi-amping - only one amp active at the time!
◾ no cables included (instrument, speaker or midi)
◾ no built-in load box for silent recording (external load required)
◾ no remote foot controller included

❗ The KHE AFX 8 is NOT compatible with the 2019 version of the ACS 8x4.
❗ The AFX 8 does not work in combination with amp switchers from competitors, KHE only!

SHIPPING & DELIVERY

◾ Payment: Credit Card or PayPal in CHF (Swiss Francs). For Bank Transfer (IBAN), send us a message.
◾ Stock units are usually shipped within one working day
◾ Shipping from Switzerland (non-EU)
◾ Price excluding VAT. Import charges may apply for the customer on import.
◾ Worldwide shipping!
◾ Shipping: USA + CA: 99 CHF , EU + UK: 48 CHF, others: see checkout
◾ Shipping Delivery Time: USA 2-5 days, EU 5-8 days (UPS Express or UPS Standard)
◾ The shipment is fully covered by insurance. If it's lost or damaged, you'll get a new switcher!

Any questions about the switcher?
Not sure which switcher to choose?

Send us a message if you have any questions!

PRODUCT LINE UP

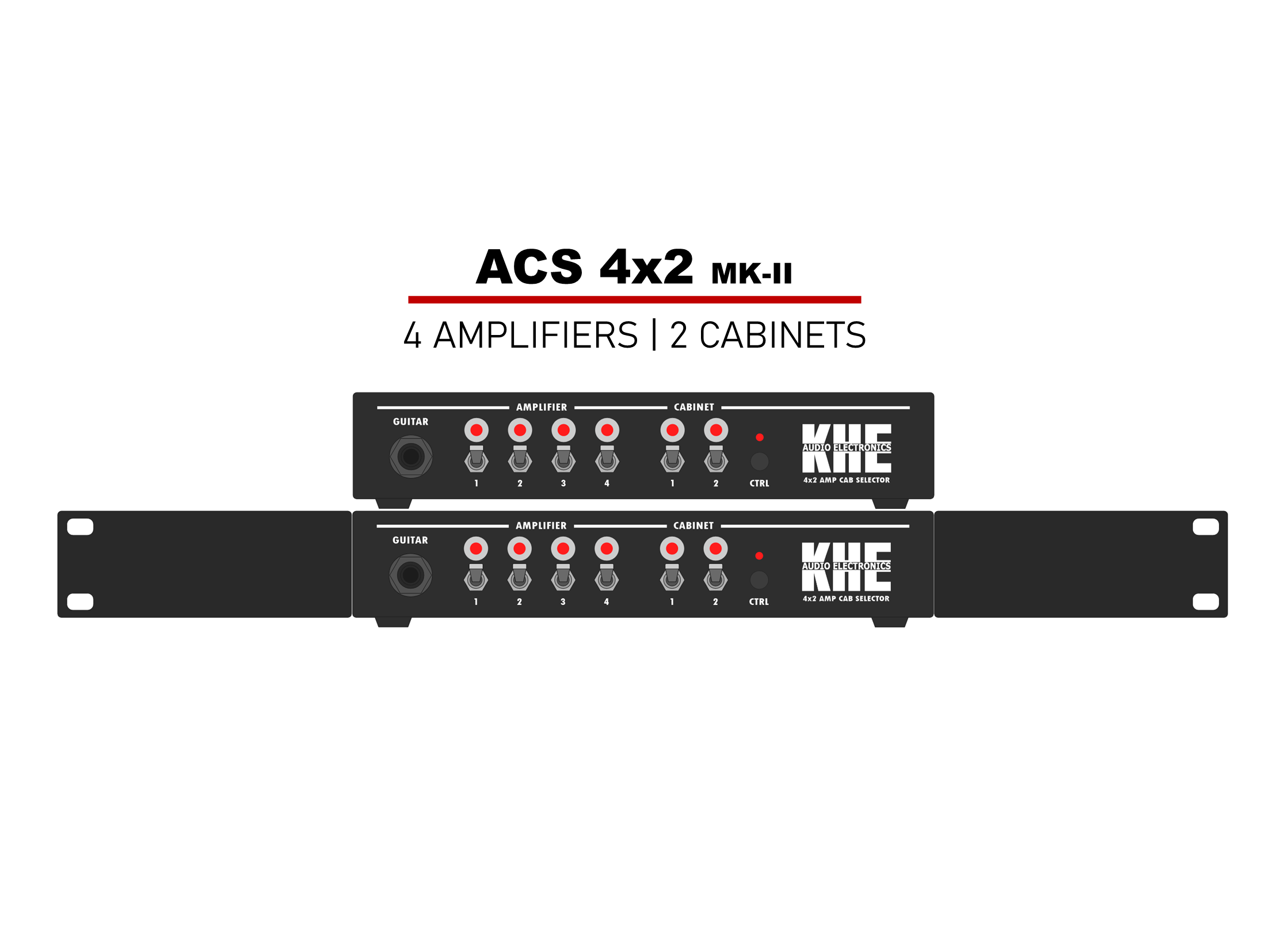

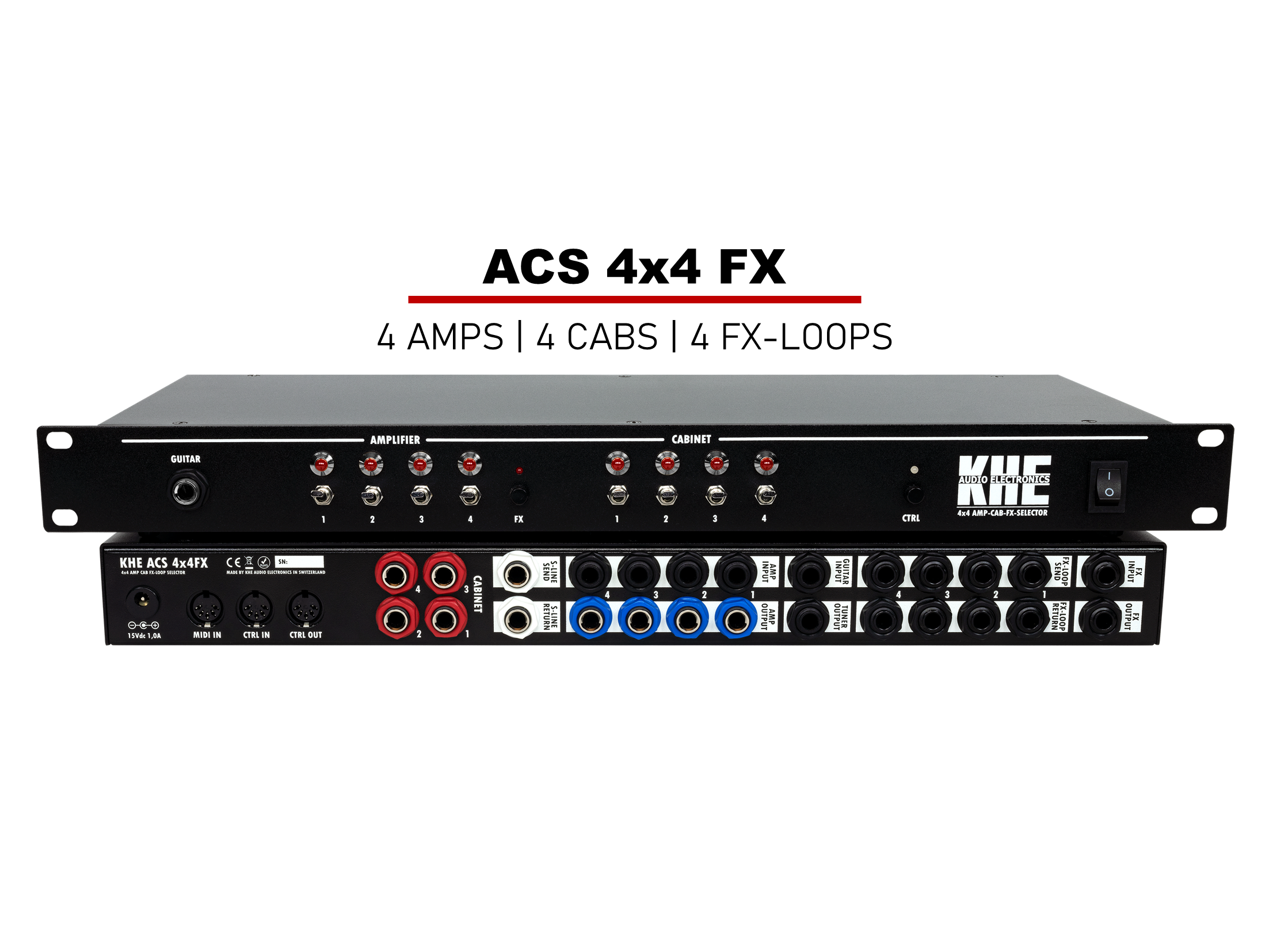

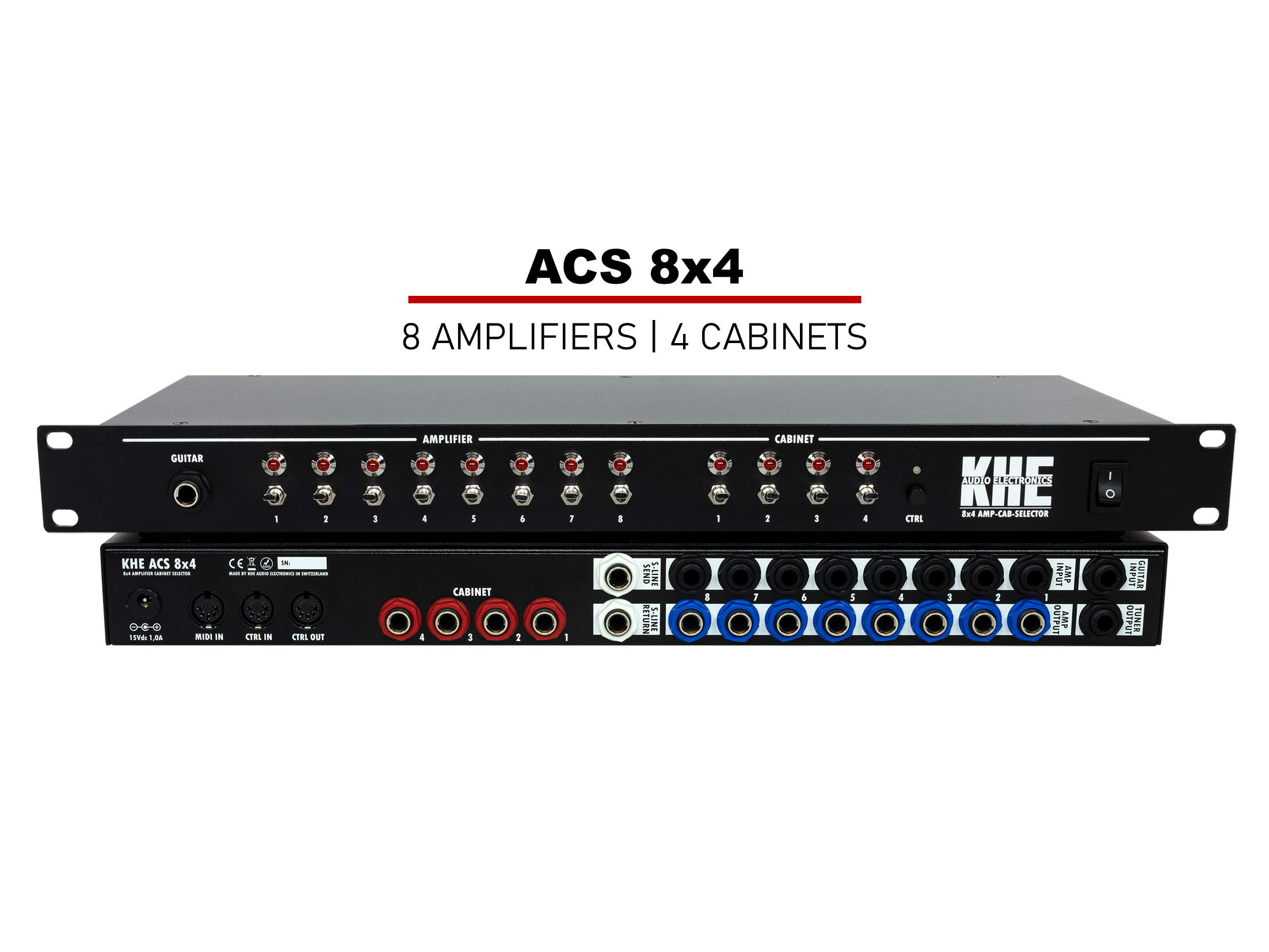

The KHE ACS-Series contains 7 amp switcher models with different sizes and switching options:
